Interior Linear
LINK MIDI SF

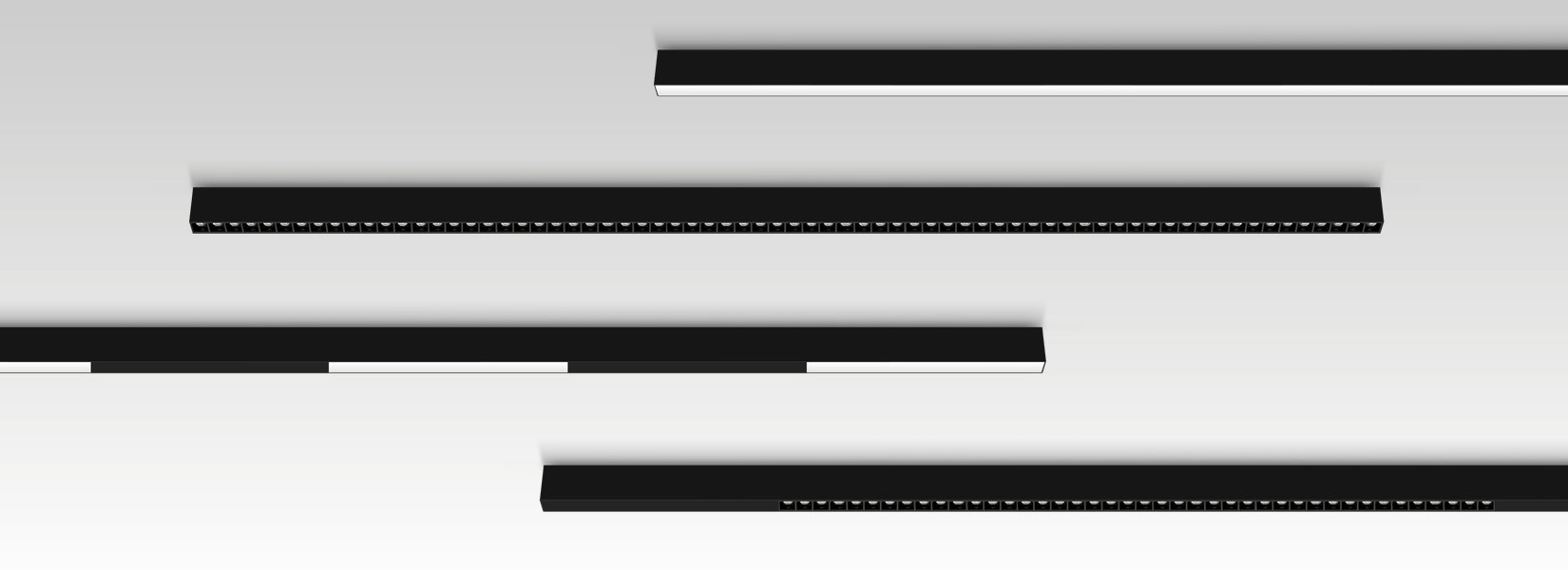

- LINK stands as the newest member of the linear interior family, introducing a versatile array of options to diverse lighting needs.

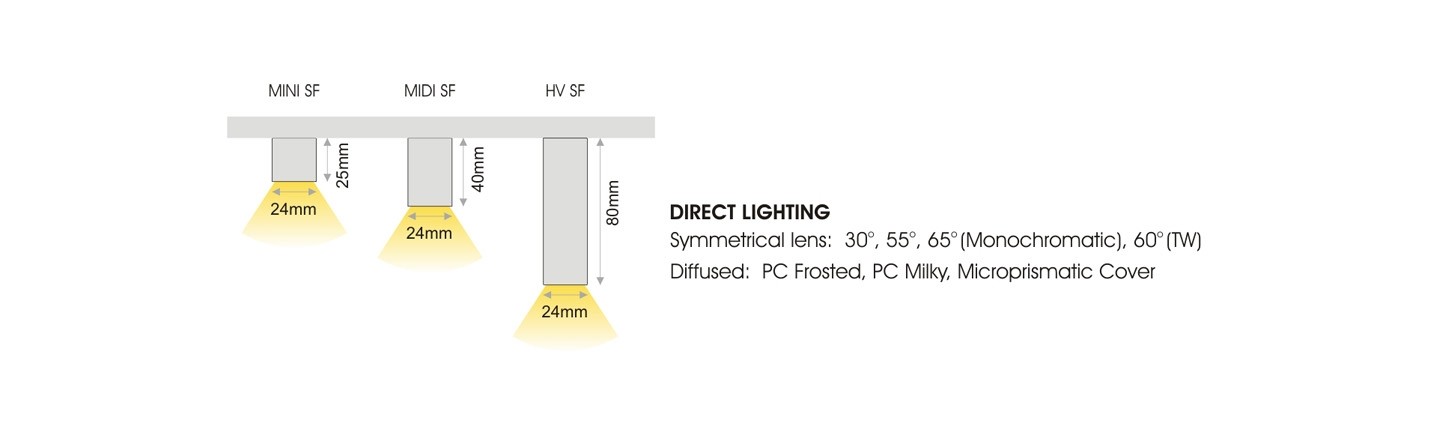

- LINK SF has three type of surface models (MINI /MIDI/ HV), available as ready luminaires in different lengths.
- It is offered either in full or in dashed type with different light output arrangements.
- It is offered anodized, white (RAL 9003), or black (RAL 9005) colour. Other RAL colours also available upon request.
- LINIK SF as ready luminaire is available either directional or diffused with Samsung LED: L90/B10 >50.000h.
- LINK MINI and LINK MIDI are only available 24VDC.
- LINK HV is only available 230VAC.

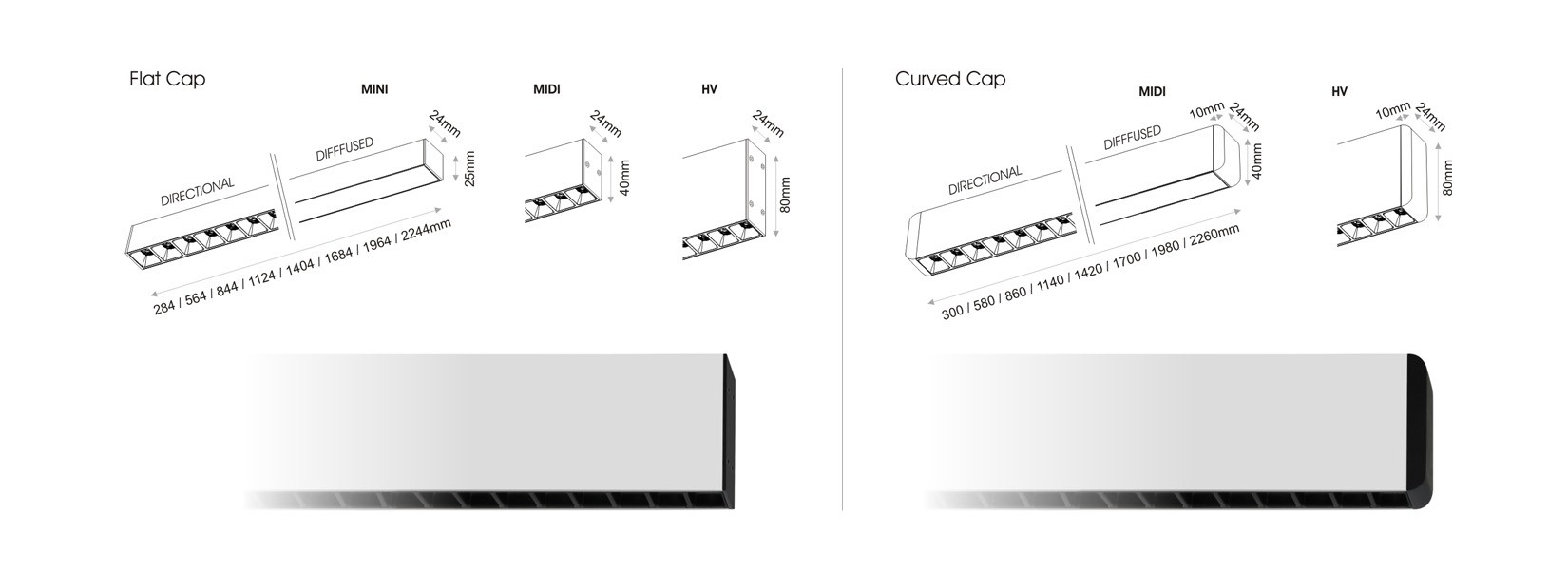

- LINK MIDI and LINK HV are available with flat or curved cover.
- Low UGR ensuring visual comfort (UGR <19 for all directional Models).
- Indoor use: IP40
- Customized options are also available upon request.
Lighting management options:
On-Off/DALI/0..10V/1..10V/DMX512/PHASE CUT/PUSH BUTTON/Bluetooth
L90/B10 >50.000h
Available upon request:
- Custom dimensions
- Custom luminaire colours
- Custom LED output combinations
Dimensions

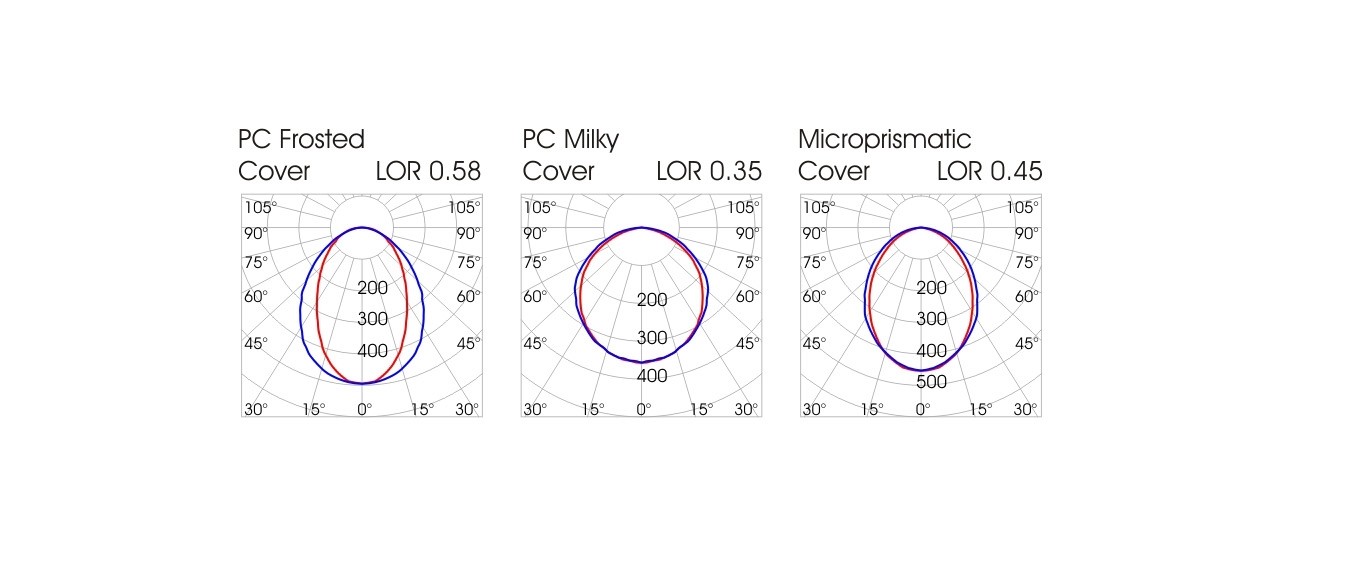

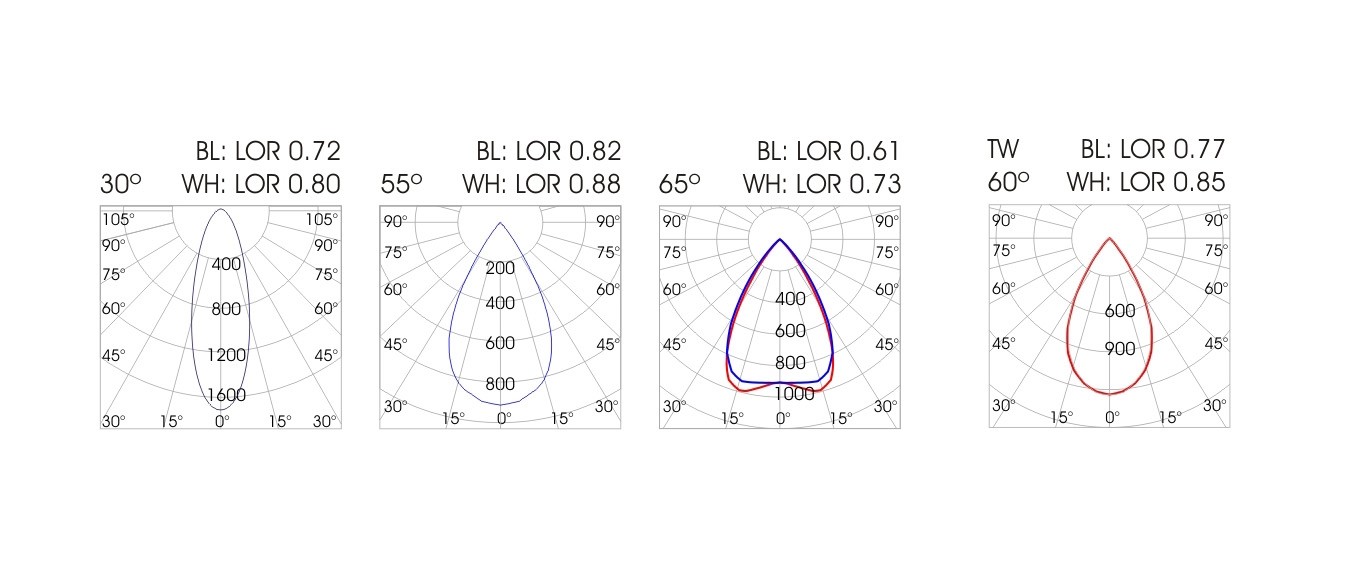

Photometric
