Lighting Management & Control Systems

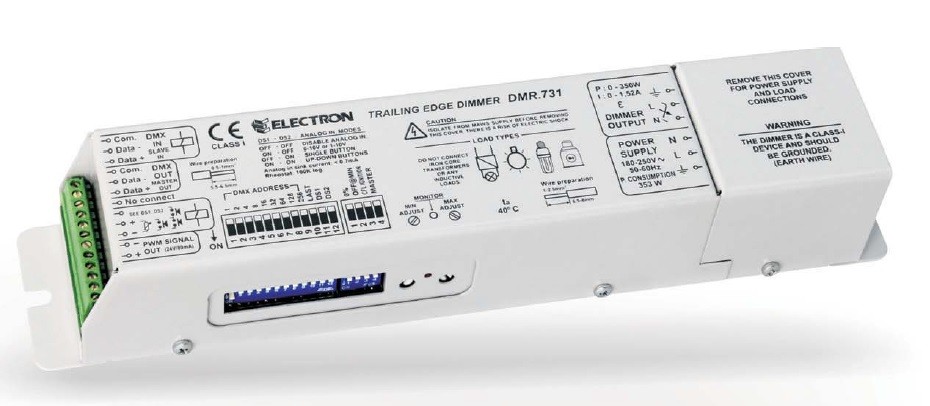

DMR.731 FLICKER FREE TRAILING EDGE DIMMER

Economic solution for controlling:
  • Dimmable LEDs 230V.
  • Dimmable CFLs .
  • Trailing edge dimmable Electronic Transformers.
  • Handles great inrush currents.
  • Lamps connected up to 350W.
  • Diming Law Correction eliminating dead fields of the lamps.
  • Master - Slave operation for controlling multiple Dimmers with one controller.
  • CFL ignition.
  • DMX-512 input.
  • Analogue input (0/10V, 1/10V, rheostat 100Klog, button, UP/DOWN button).
  • PWM signal output can drive ELECTRON SA constant voltage and constant current converters.
Output power 350W
Controlled by IGBT
Dimensions
