Ceiling Recessed

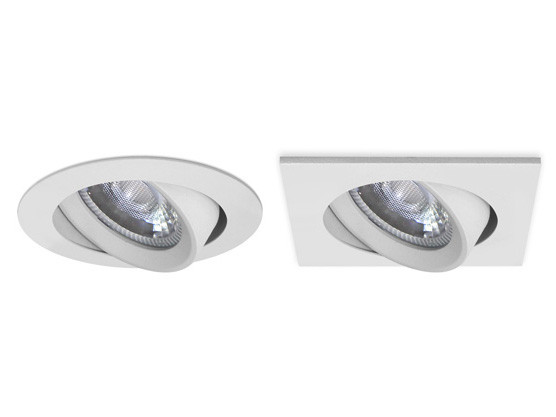

Soul ADJ

  • SOUL is a series of recessed downlights.
  • It is available either round or square.
  • It is either fixed or adjustable depending on the model.
  • It is available in standard or deep version offering extra visual comfort.
  • Power consumption: varies from 3 to 18 watt.
  • Beam angle: varies from 9 to 50 degrees.
  • SOUL DEEP version is also available for LED lamps.
  • Accessories available: honeycomb, linear spread lens, softening lens.
  • Luminaire outer trim material: aluminium.
  • Outer trim available in black or white as standard but custom colours also available upon request.
  • 3 SDCM
  • L90/B10 50000h
  • Low UGR ensuring visual comfort (UGR<15 for DEEP version models
  • Selection of IP protection: either IP20 or IP54 (face only).
  • Soul is also offered with an ingress protection rate IP65 (face only).
  • Soul Mini: constant current 350mA @3W / 500mA @4.3W.

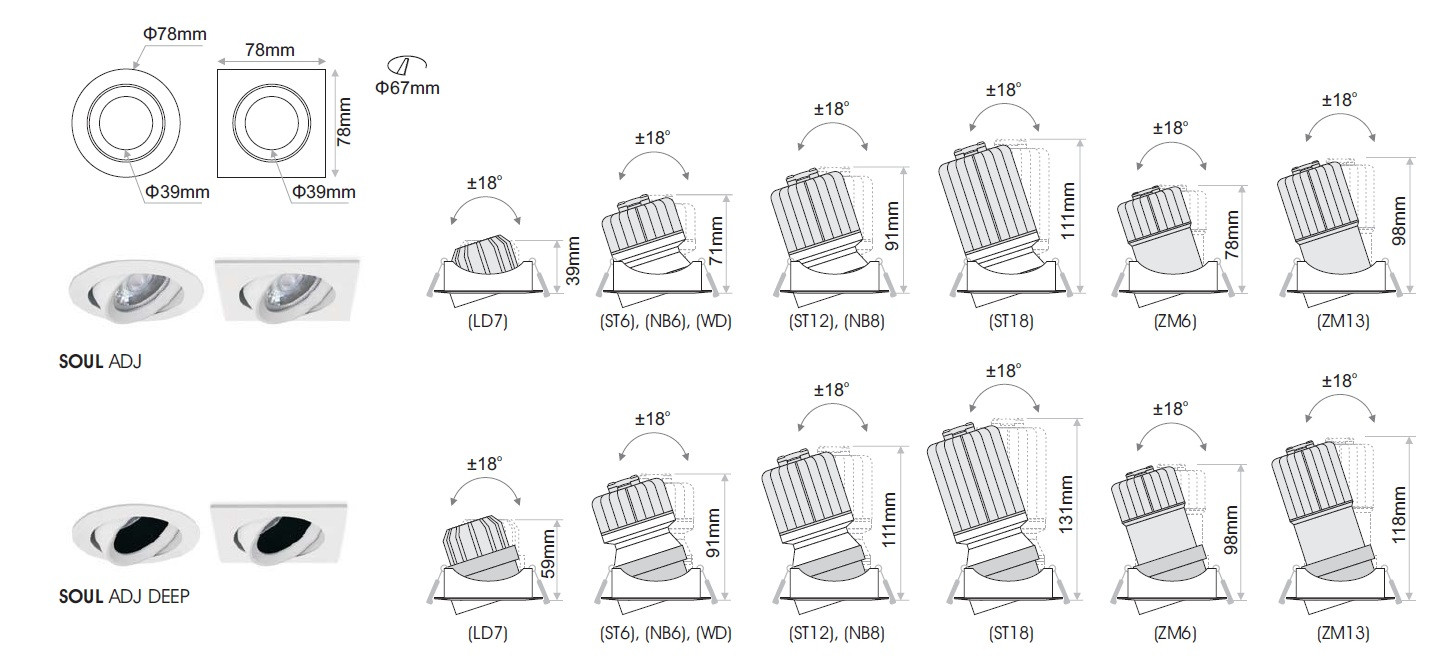

Dimensions

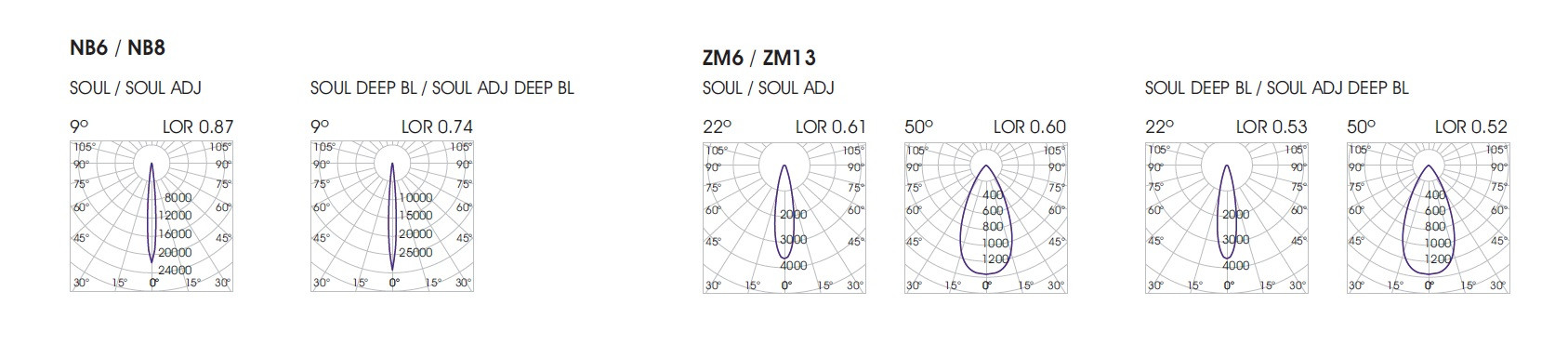

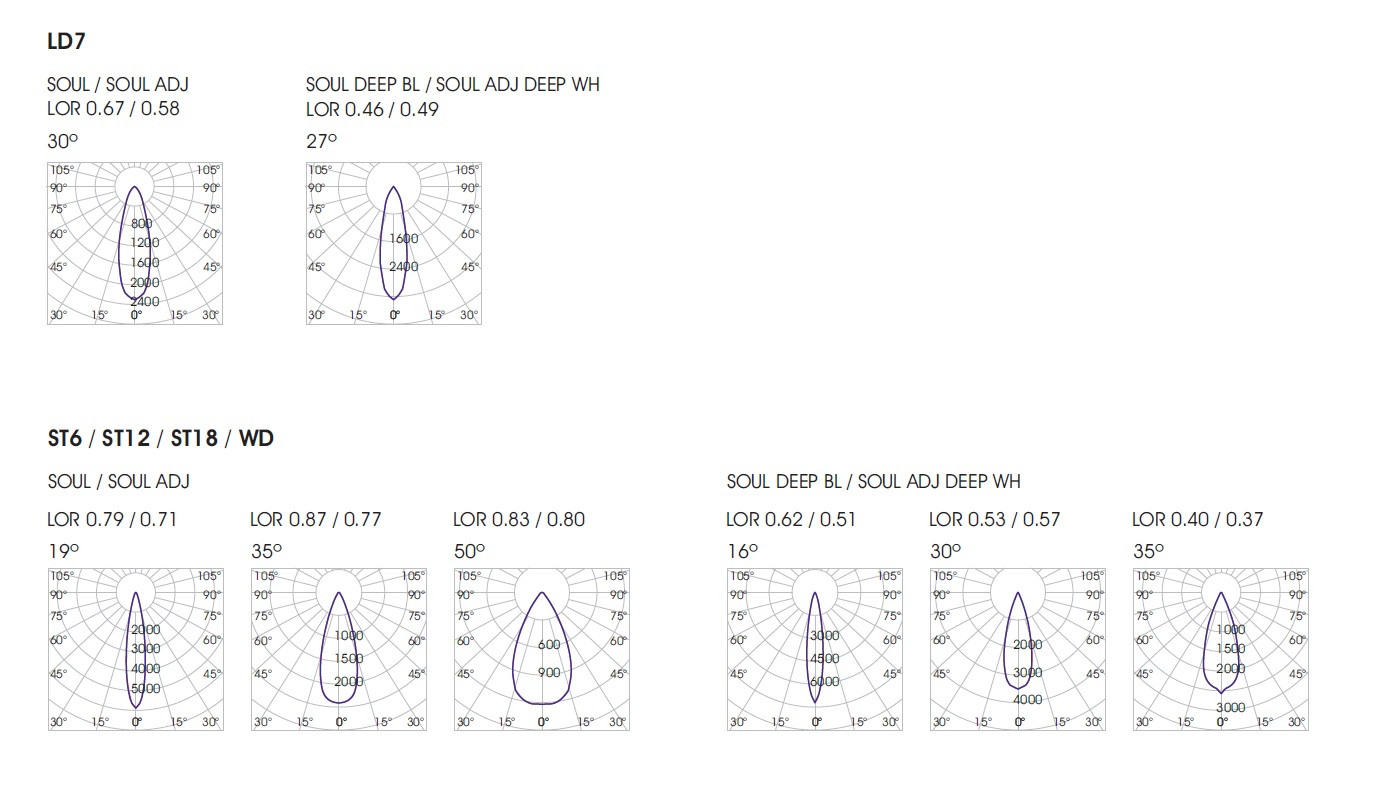

Photometric
image image
