Exterior Linear

Outliner 50 IP67

Outliner IP67 series is a complete series of custom made linear luminaires with clear or opal lighting surface. It is available in 4 different widths of 20, 30, 40, 50mm (luminous area widths). It is offered in standard and in custom lengths varying from 50cm up to 400cm. The series offers an excellent uniformity with colour consistency and is ideal due to its special design and construction to meet the most demanding lighting applications.
  • Multiple mounting options (fixed, surface, wall brackets or pendant).
  • Long & Short bracket accessories available for wall installation.
  • L90/B10 >50.000h (for monochromatic models).
  • Ingress Protection: IP67
  • Supplied with input cable & IP68 connector as standard.
  • Possibility for in-out cables & IP68 connectors upon request as extra.
Lighting management options:
On-Off/DALI/0..10V/1..10V/DMX512/PHASE CUT/IR/RF/PUSH BUTTON/Bluetooth

L90/B10 50.000h
for monochromatic models

Available upon request:
  • Custom dimensions
  • Custom luminaire colours

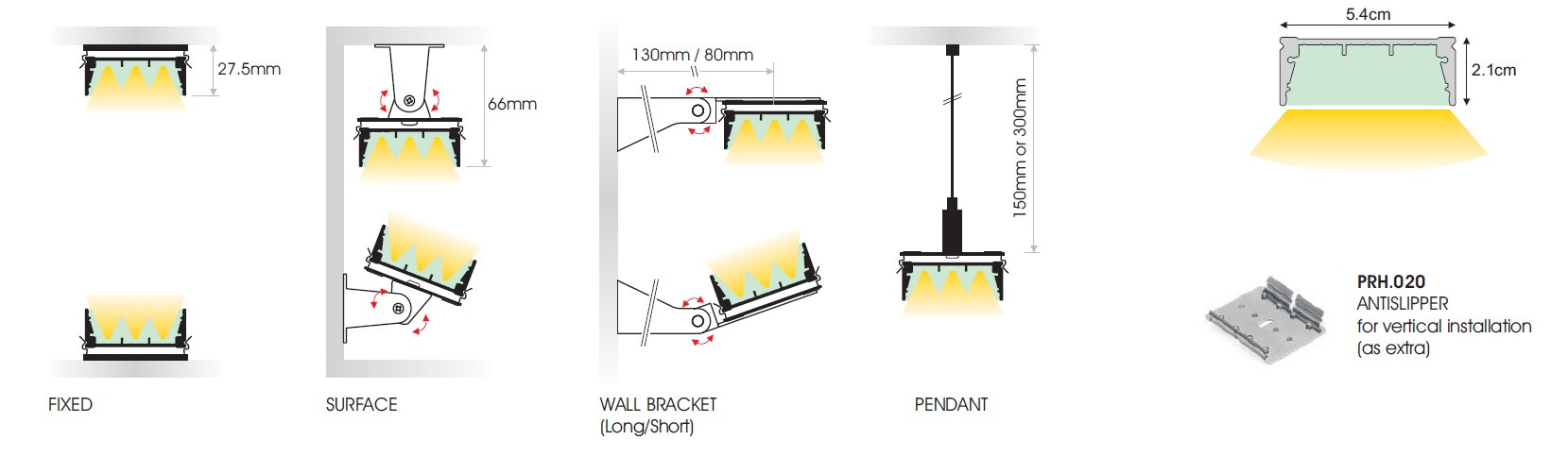

Dimensions

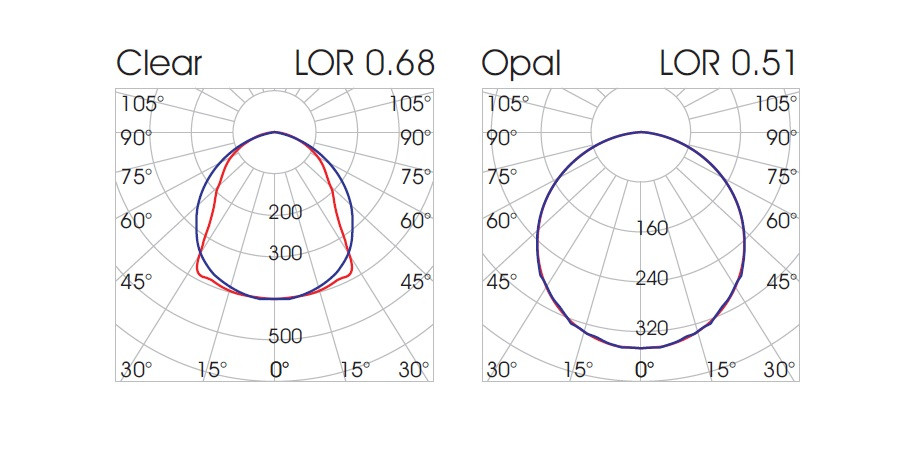

Photometric
