Lighting Management & Control Systems
MICON CONTROL PANELS B SERIES
MICON CONTROL PANELS B & E SERIES
The MICON B and E series of control panels are used to control the MICON Dimmers and Fluorescent Controllers. The MICON B series of Base control panels is offered with sliders or push buttons and is used in cases of simple control requirements. Parallel connection of MICON BB series of push buttons is possible. The MICON E series of Electronic control panels is the most popular choice for commercial applications as it provides more sophisticated control, such as level control and combination between level control, electronic sliders and electronic push buttons. Parallel connection between the same or different types of MICON E series is possible. The panels are available in stainless steel and are designed to fit in a single gang or double gang back box. The power supply is provided from the Dimmers and/or Fluorescent Controllers.

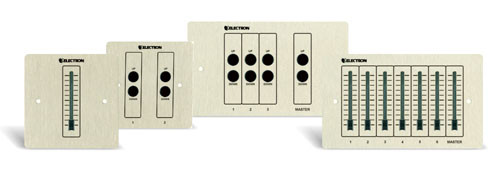

MICON B SERIES: BASE ECO CONTROL PANELS
| Code | Description |
| MICON BS1 | Control with one slider |
| MICON BB1 | One output UP/DOWN Control |
| MICON BS2 | Control with two sliders |
| MICON BB2 | Two outputs UP/DOWN Control |
| MICON BS3 | Control with three sliders |
| MICON BB3 | Three outputs UP/DOWN Control |
| MICON BS 3M | Control with three sliders and Master |
| MICON BB 3M | Three outputs UP/DOWN Control and Master |
| MICON BS 6M | Control with six sliders and Master |
| MICON BB 6M | Six outputs UP/DOWN Control and Master |
