Exterior Linear

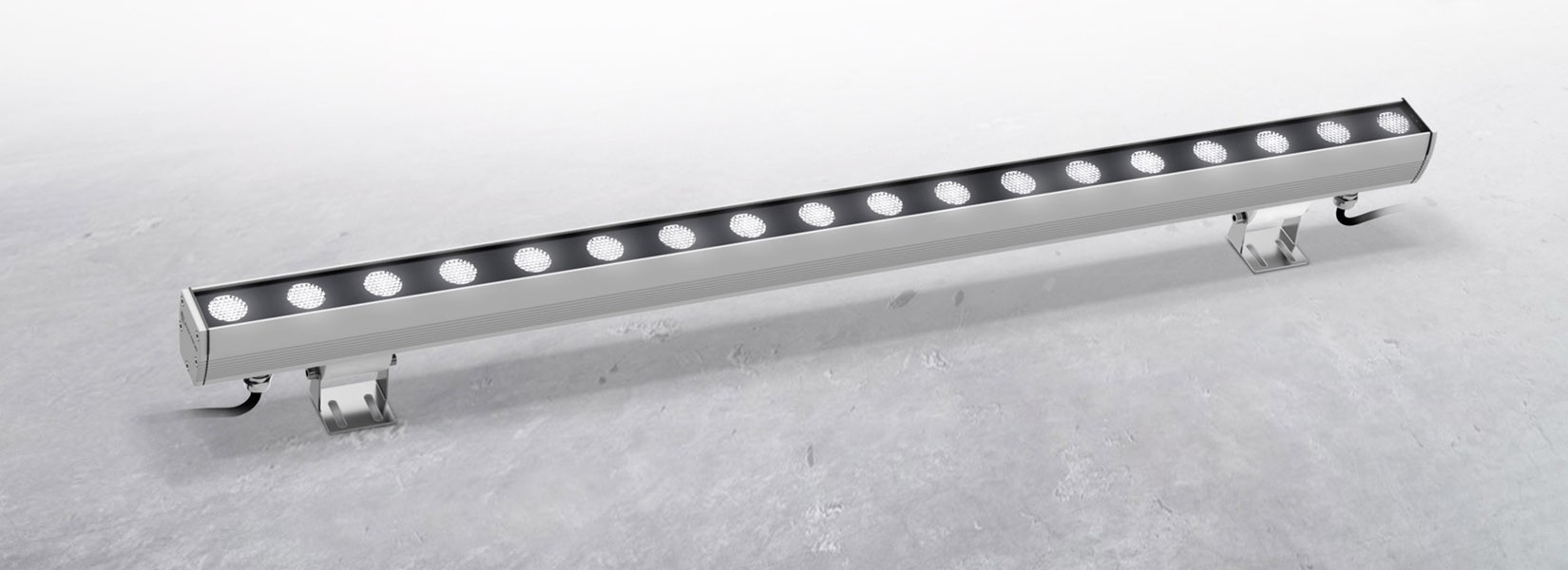

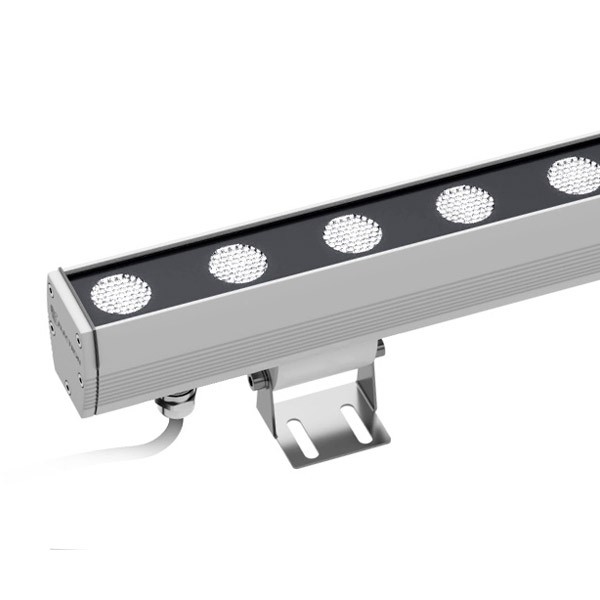

ELEGANT MIDI II OBC (On Board Control)

ELEGANT MIDI II OBC (On Board Control), the latest advancement in the Elegant series, designed for optimal performance in both indoor and outdoor architectural lighting. The ELEGANT MIDI II OBC is equipped with onboard control options, such as DMX, DALI, and Casambi. Its versatile design features adjustable wall brackets
for precise wall washing, ensuring uniform light distribution with a consistent pitch between luminaires. For superior glare control, the ELEGANT MIDI II OBC offers advanced options including a honeycomb or microlouvre accessory, minimizing unwanted glare for enhanced visual comfort.

Like the rest of the Elegant series, the ELEGANT MIDI II OBC can be customized in a range of RAL colors upon request,making it a perfect solution for tailored lighting designs.



L90/B10 50.000h
for monochromatic models

L70/B10 50.000h
for RGBW & TW models

  • ELEGANT MIDI II OBC offers excellent uniformity and color consistency.
  • Antiglare control through the use of either honeycomb or micro louvre. Optional for low voltage models.
  • Supplied with input cable & IP 68 connector as standard.

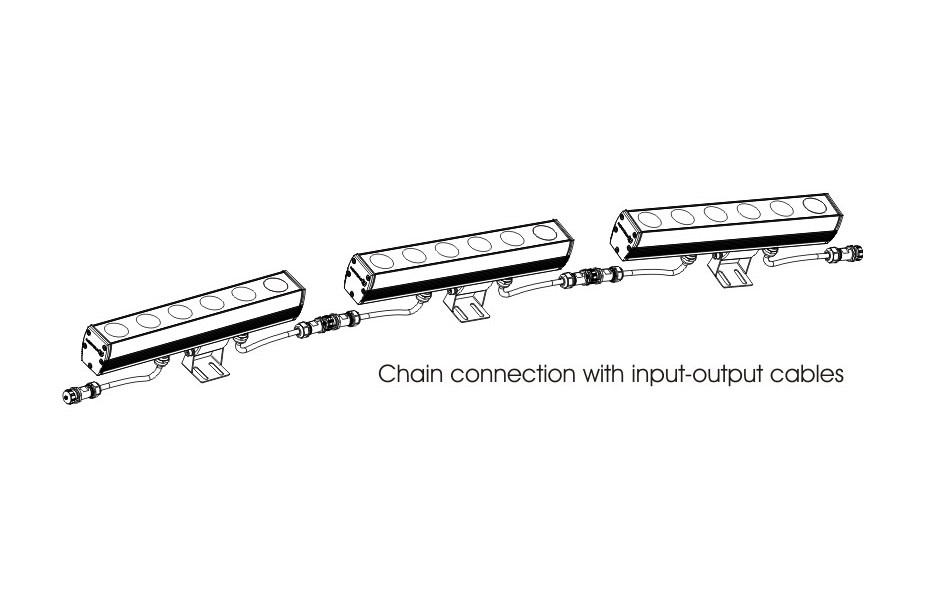

  • Possibility for in-out cables & connectors upon request (Standard for 25 & 30cm)
  • Cost Effective & Constant Power models at 24VDC
  • High Efficient models from 24VDC up to 48VDC & 230VAC.
  • Luminaire Colour: Anodized, Black (RAL9005), White (RAL9003), or Marine Type (Metallic Matt YW201E).
  • Suitable for indoor and outdoor use.
  • Ingress Protection: IP66
  • IK Rate: IK04

 Constant Power for RGBW & TW models provide:

  • Up to 400% more color intensity (per color) compared to standard models.
  • Lighting power remains constant regardless of the selected color combination



Lighting management on board options:
On-Off / PWM Dimmable / DALI / DMX512-RDM / Bluetooth

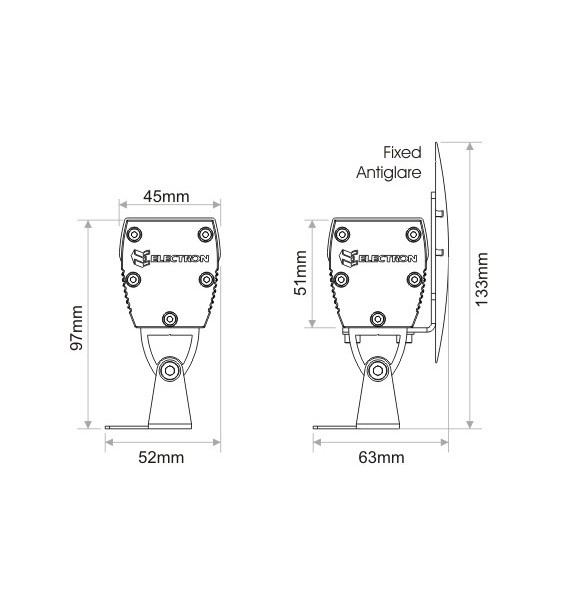

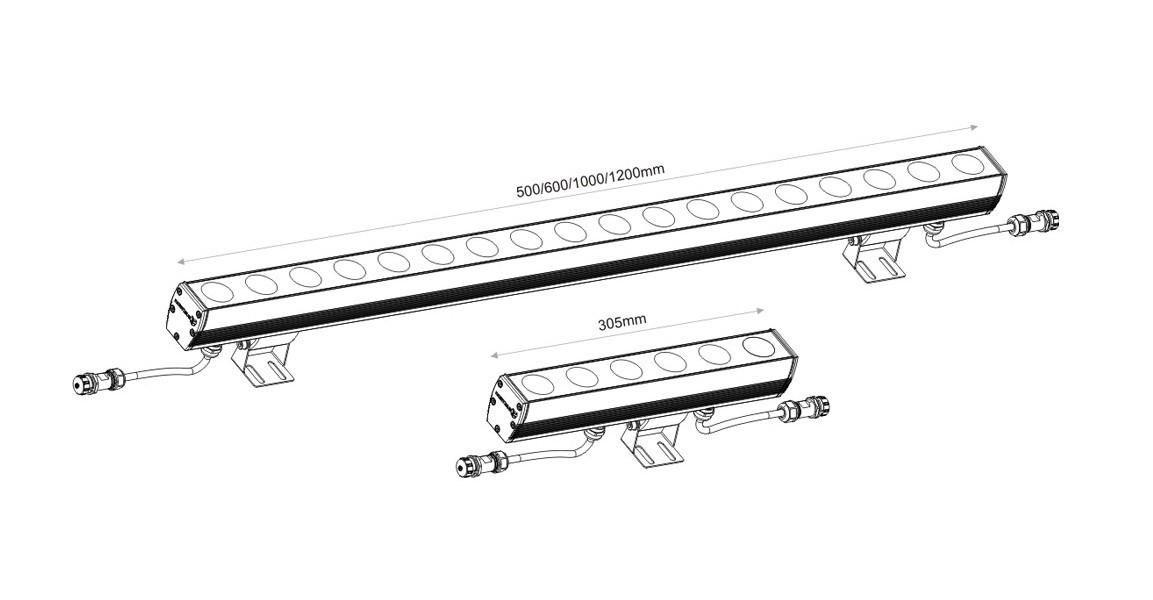

Dimensions
image image image
