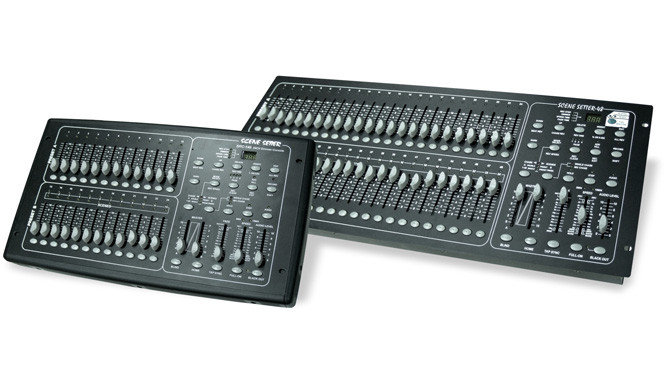

SCENE SETTER 24 & 48
DMX LIGHT CONTROLLERS
SCENE SETTER 24
24 DMX CHANNELS LIGHT CONTROLLERS
| Model | Code | No.of channels | Input Voltage |
Domensions | Weight |
| SCENE SETTER 24 |
CDS.005 | 24 | 12-18VDC (500mA) |
482x264x85mm | 4.8kg |
SCENE SETTER 48
48 DMX CHANNELS LIGHT CONTROLLERS
| Model | Code | No.of channels | Input Voltage |
Domensions | Weight |
| SCENE SETTER 48 |
CDS.004 | 48 | 12-20VDC (500mA) |
710x270x75mm | 7.5kg |
SPECIFICATIONS
- DMX OUTPUT (3-pin Female XLR).
- MIDI IN/OUT/THRU (5-pin DIN) Compatible.
- Audio Control through Line IN (100mV-1Vp-p).
- 3 seven segments LED DISPLAY.
- Single Chase/Mix Chase - Single Scene/Mix Scene Operation.
- Master FADE / SPEED / AUDIOLEVEL Control.
|
SCENE |
SCENE |
|
| 24 | 48 | : DMX Control Channels. |
| 48 | 96 | : Recordable memories for static scenes chaser programs with 4500 total steps. |
| 12-18VDC | 12-20VDC | : Power input (power pack included 230VAC/50-60Hz). |
