Interior Pendant

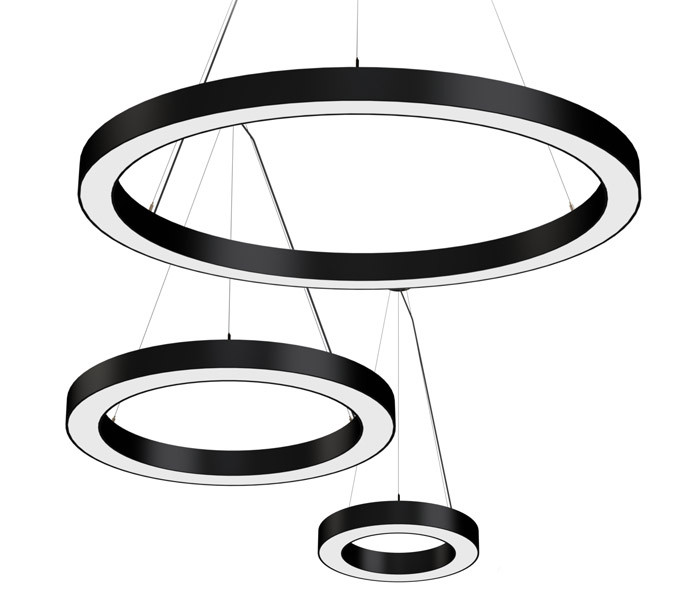

Eclipse PDD

  • ECLIPSE is a complete series of round luminaires available for surface, pendant, recessed and trimless application.
  • The pendant version is offered either with only Direct or Direct/Indirect illumination.
  • It consists of two models: High Power and High Efficiency.
  • It is offered with a Low Glare (UGR<20.8*) as an option in the High Power model.
  • It is offered with a Low UGR (UGR<18*) as an option in the High Efficiency model.
  • Luminaire material: Aluminium.
  • Cover material: PMMA
  • Powder Coated: Black (RAL9005), White (RAL9003), or Grey (RAL7037) as standard.
  • Custom luminaire colours also available on request.
  • Low tolerances for colour temperature (MacAdam 3).
  • Lumen maintenance L80/B10 50.000h
  • Emergency Function capability. (3 hours, with build-in rechargeable battery).
  • Indoor Use: IP40
LED source efficacy up to 199lm/W (4000K)
Luminaire efficacy up to 115lm/W (4000K)

Available upon request:
  • Custom luminaire colours,
  • Emergency version
*Glare Evaluation: X=4H / Y=8H, S=0,25H, Reflection factors: 70/50/20

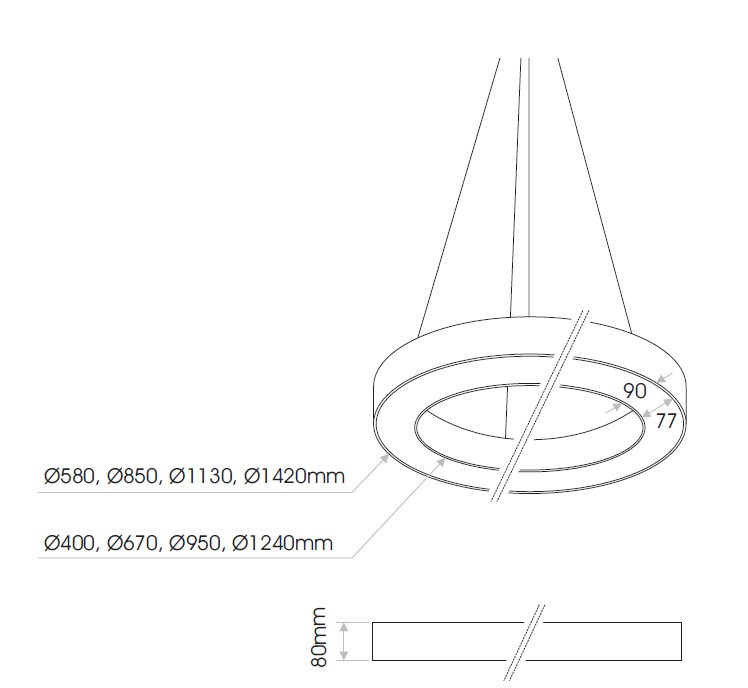

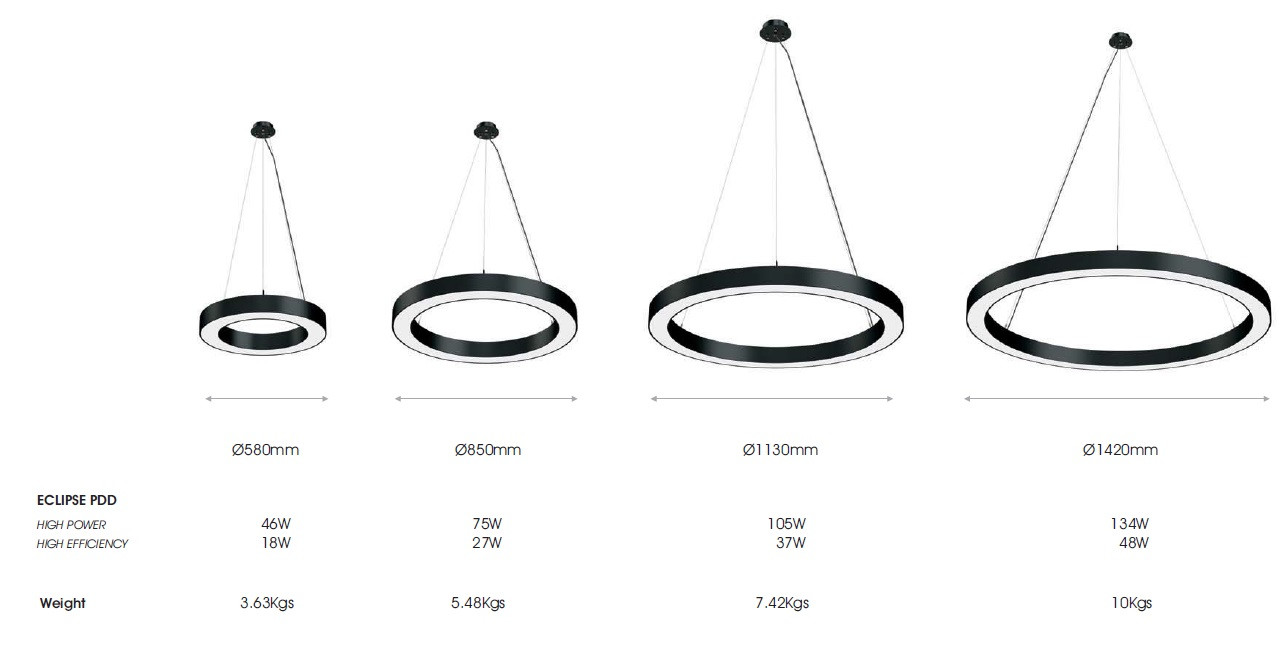

Dimensions
image image

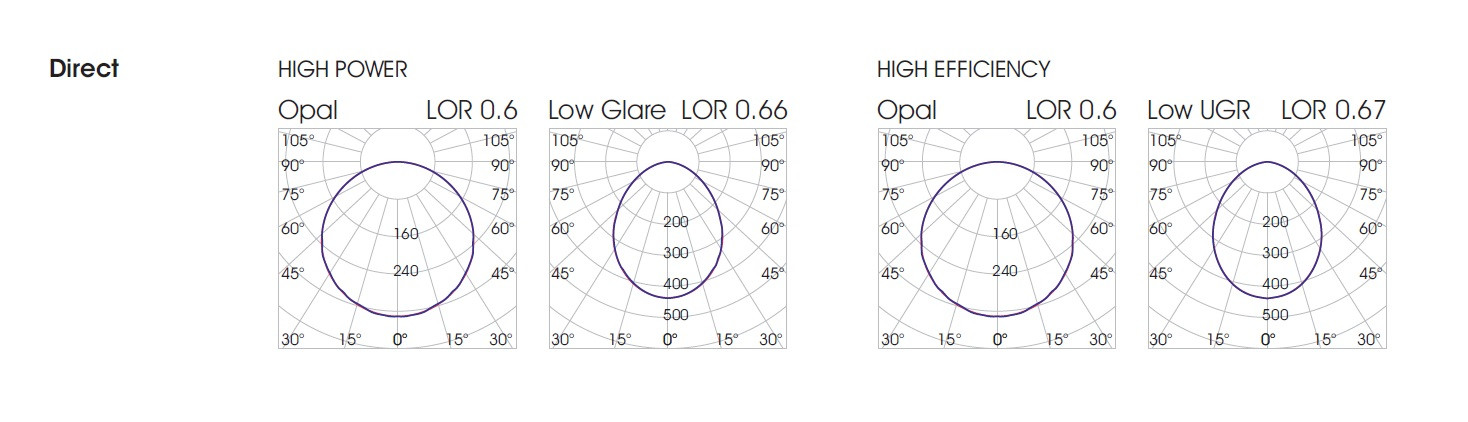

Photometric
